  4. Item #CHASSIST 41-46

Discontinued Item: This item is discontinued. Please CALL to see if there is a replacement or an alternative.

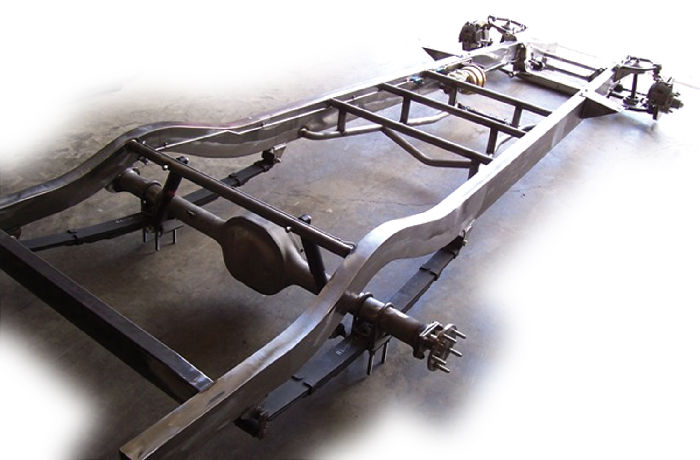

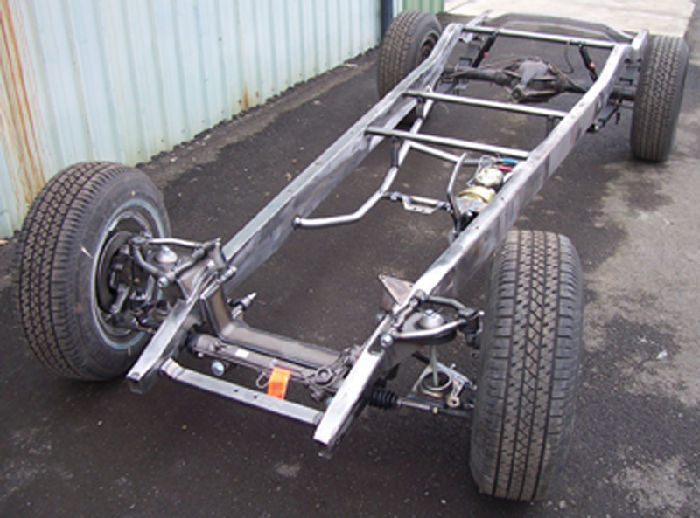

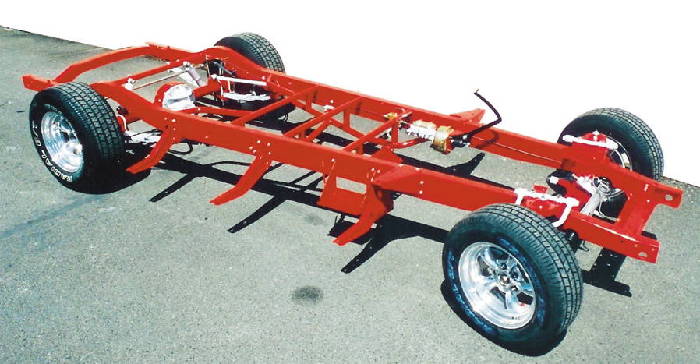

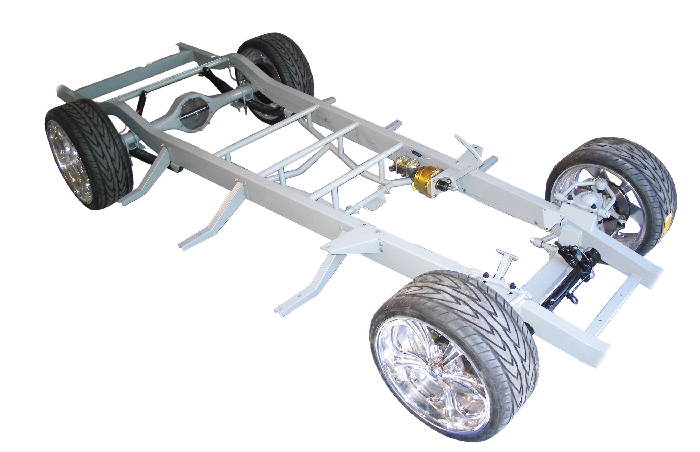

Chevrolet Base GM Truck Chassis Photo Main Click for larger view & slide show -Click for larger view & slide show -Click for larger view & slide show -

Chevrolet Base GM Truck Chassis

Item # CHASSIST 41-46
Weighs 1.0000lbs.

Perimeter Frame--Steel rails, fully boxed. Motor mounts and removable transmission drop out installed. Tubular X-member center section. Mustang II independent front suspension including: tubular A-arms, hubs, 2" drop spindles, 11" disc brakes, coil springs, shocks, and rack and pinion steering unit. Complete rear suspension including: new Currie Ford 9" housing (3rd member not included), new Dutchman axles, Wilwood 12" disc brakes w/integral emergency brake, leaf springs, and shocks. Power brake package including: dual power booster/master cylinder, mounting bracket, and brake pedal. Many options available (call for pricing): -Power rack and Pinion steering unit. -new Currie Ford 9" 3rd member (specify gear ratio) -steel brake lines installed with residual valves, brake light switch, and Earl's braided stainless lines to calipers. -Triangulated rear 4-bar with QA1 or Aldan coil-over shocks. -TCI dropped axle front end with Vega steering box. -Kugel Komponents Phase 1 IFS with rack and pinion steering. -Kugel Komponents Independent Rear Suspension (IRS) -Chassis powder coat (incl. rear axle and misc. brackets) -Inboard leaf spring mounting

This part fits most 1941 1942 1946 Chevrolet Trucks; exceptions may apply. Please read the complete description to see if this part fits your specific vehicle and application.

Discontinued Item
Leave a product Review

Reviews

There are no reviews at this time
Login to Write A Review

Fits Vehicle Models

Product Fits Vehicle Models

Years Make Type Model Body Series Description
1941 Chevrolet Truck YW 1.5 Utility - 1 1/2 Ton - Cab Over Engine - Wheelbase 158in.
1941 Chevrolet Truck YV 1.5 Utility - 1 1/2 Ton - Cab Over Engine - Wheelbase 132 1/2in.
1941 Chevrolet Truck YU 1.5 Utility - 1 1/2 Ton - Cab Over Engine - Wheelbase 109in.
1941 Chevrolet Truck YT 1.5 Utility - School Bus Chassis - Dual Wheels - Wheelbase 195in.
1941 Chevrolet Truck YS 1.5 Utility - 1 1/2 Ton - Single Or Dual Wheels - Wheelbase 160in.
1941 Chevrolet Truck YR Panel 1.5 Utility - 1 1/2 Ton - Single Or Dual Wheels - Wheelbase 134 1/2in.
1941 Chevrolet Truck YR 1.5 Utility - 1 1/2 Ton - Single Or Dual Wheels - Wheelbase 134 1/2in.
1941 Chevrolet Truck AN 1T Commercial - 1 Ton - Wheelbase 134 1/2in.
1941 Chevrolet Truck AM Panel 3/4T Commercial - 3/4 Ton -14in. Brakes - Panel - Wheelbase 125 1/4in.
1941 Chevrolet Truck AM 3/4T Commercial - 3/4 Ton - 14in. Brakes - 3 Stake Pockets - Wheelbase 125 1/4in.
1941 Chevrolet Truck AL Panel 3/4T Commercial - 3/4 Ton - 11in. Brakes - Panel - Wheelbase 125 1/4in.
1941 Chevrolet Truck AL 3/4T Commercial - 3/4 Ton - 11in. Brakes - 3 Stake Pockets - Wheelbase 125 1/4in.
1941 Chevrolet Truck AK Suburban G 1/2T Commercial - 1/2 Ton - Suburban Carryall W/End Gate - Wheelbase 115in.
1941 Chevrolet Truck AK Suburban D 1/2T Commercial - 1/2 Ton - Suburban Carryall W/Doors - Wheelbase 115in.
1941 Chevrolet Truck AK Panel 1/2T Commercial - 1/2 Ton - Panel - Wheelbase 115in.
1941 Chevrolet Truck AK 1/2T Commercial - 1/2 Ton - 2 Stake Pockets - Wheelbase 115in.
1942 Chevrolet Truck MY 1.5 Utility - School Bus Chassis - Dual Wheels - Wheelbase 160in.
1942 Chevrolet Truck MW 1.5 Utility - 1 1/2 Ton - Cab Over Engine - Wheelbase 158in.
1942 Chevrolet Truck MV 1.5 Utility - 1 1/2 Ton - Cab Over Engine - Wheelbase 132 1/2in.
1942 Chevrolet Truck MU 1.5 Utility - 1 1/2 Ton - Cab Over Engine - Wheelbase 109in.
1942 Chevrolet Truck MT 1.5 Utility - School Bus Chassis - Dual Wheels - Wheelbase 195in.
1942 Chevrolet Truck MS 1.5 Utility - 1 1/2 Ton - Single Or Dual Wheels - Wheelbase 160in.
1942 Chevrolet Truck MR PANEL 1.5 Utility - 1 1/2 Ton - Panel - Single or Dual Wheels - Wheelbase 134 1/2in.
1942 Chevrolet Truck MR 1.5 Utility - 1 1/2 Ton - Single Or Dual Wheels - Wheelbase 134 1/2in.
1942 Chevrolet Truck BN Panel 1T Utility - 1 Ton - Panel - Wheelbase 134 1/2in.
1942 Chevrolet Truck BN 1T Utility - 1 Ton - Wheelbase 134 1/2in.
1942 Chevrolet Truck BM Panel 3/4T Commercial - 3/4 Ton - 14in. Brakes - Panel - Wheelbase 125 1/4in.
1942 Chevrolet Truck BM 3/4T Commercial - 3/4 Ton - 14in. Brakes - 3 Stake Pockets - Wheelbase 125 1/4in.
1942 Chevrolet Truck BL Panel 3/4T Commercial - 3/4 Ton - 11in. Brakes - Panel - Wheelbase 125 1/4in.
1942 Chevrolet Truck BL 3/4T Commercial - 3/4 Ton - 11in. Brakes - 3 Stake Pockets - Wheelbase 125 1/4in.
1942 Chevrolet Truck BK Suburban G 1/2T Commercial - 1/2 Ton - Suburban Carryall W/End Gate - Wheelbase 115in.
1942 Chevrolet Truck BK Suburban D 1/2T Commercial - 1/2 Ton - Suburban Carryall W/Doors - Wheelbase 115in.
1942 Chevrolet Truck BK Panel 1/2T Commercial - 1/2 Ton - Panel - Wheelbase 115in.
1942 Chevrolet Truck BK 1/2T Commercial - 1/2 Ton - 2 Stake Pockets - Wheelbase 115in.
1946 Chevrolet Truck PX 2T Utility - 2 Ton - School Bus Chassis - Wheelbase 195in.
1946 Chevrolet Truck PW 2T Utility - 2 Ton - Wheelbase 160in.
1946 Chevrolet Truck PV 2T Utility - 2 Ton - Wheelbase 134 1/2in.
1946 Chevrolet Truck PS 2T Utility - 2 Ton - Cab Over Engine - Wheelbase 158in.
1946 Chevrolet Truck PR 2T Utility - 2 Ton - Cab Over Engine - Wheelbase 132 1/2in.
1946 Chevrolet Truck PP 2T Utility - 2 Ton - Cab Over Engine - Wheelbase 109in.
1946 Chevrolet Truck PL 1.5 Utility - 1 1/2 Ton - School Bus Chassis - Wheelbase 160in.
1946 Chevrolet Truck PK 1.5 Utility - 1 1/2 Ton - Wheelbase 160in.
1946 Chevrolet Truck PJ Panel 1.5 Utility - 1 1/2 Ton - Panel - Wheelbase 134 1/2in.
1946 Chevrolet Truck PJ 1.5 Utility - 1 1/2 Ton - Wheelbase 134 1/2in.
1946 Chevrolet Truck OY 1.5 Utility - School Bus Chassis - Manf. 1945 - Wheelbase 195in.
1946 Chevrolet Truck OW 1.5 Utility - School Bus Chassis - Manf. 1945 - Wheelbase 160in.
1946 Chevrolet Truck OS 1.5 Utility - 1 1/2 Ton - Manf. 1945 - Wheelbase 160in.
1946 Chevrolet Truck OR Panel 1.5 Utility - 1 1/2 Ton - Panel - Manf. 1945 - Wheelbase 134 1/2in.
1946 Chevrolet Truck OR 1.5 Utility - 1 1/2 Ton - Manf. 1945 - Wheelbase 134 1/2in.
1946 Chevrolet Truck OI 2T Utility - 2 Ton - Cab Over Engine - Manf. 1945 - Wheelbase 132 1/2in.
1946 Chevrolet Truck OJ 2T Utility - 2 Ton - Cab Over Engine - Manf. 1945 - Wheelbase 158in.
1946 Chevrolet Truck OH 2T Utility - 2 Ton - Cab Over Engine - Manf. 1945 - Wheelbase 109in.
1946 Chevrolet Truck OG 2T Utility - School Bus Chassis - Manf. 1945 - Wheelbase 195in.
1946 Chevrolet Truck OF 2T Utility - 2 Ton - Manf. 1945 - Wheelbase 160in.
1946 Chevrolet Truck OE 2T Utility - 2 Ton - Manf. 1945 - Wheelbase 134 1/2in.
1946 Chevrolet Truck DS Panel 1T Commercial - 1 Ton - Panel - Wheelbase 134 1/2in.
1946 Chevrolet Truck DS 1T Commercial - 1 Ton - Wheelbase 134 1/2in.
1946 Chevrolet Truck DR Panel 3/4T Commercial - 3/4 Ton - Panel - Wheelbase 125 1/4in.
1946 Chevrolet Truck DR 3/4T Commercial - 3/4 Ton - 3 Stake Pockets - Wheelbase 125 1/4in.
1946 Chevrolet Truck DP Suburban G 1/2T Commercial - 1/2 Ton - Suburban Carryall W/End Gate - Wheelbase 115in.
1946 Chevrolet Truck DP Suburban D 1/2T Commercial - 1/2 Ton - Suburban Carryall W/Doors - Wheelbase 115in.
1946 Chevrolet Truck DP Panel 1/2T Commercial - 1/2 Ton - Panel - Wheelbase 115in.
1946 Chevrolet Truck DP 1/2T Commercial - 1/2 Ton - 2 Stake Pockets - Wheelbase 115in.
1946 Chevrolet Truck CK Panel 1/2T Commercial - 1/2 Ton - Panel - Manf. 1945 - Wheelbase 115in.
1946 Chevrolet Truck CK 1/2T Commercial - 1/2 Ton - 2 Stake Pockets - Manf. 1945 - Wheelbase 115in.
